ShiftAir® — A TECHNOLOGY MULTI FOLD AHEAD OF CONVENTIONAL INDUSTRIAL PIPING SYSTEM
ShiftAir Pneumatics based at Faridabad, Haryana has incorporated in 2015 with a mission & vision to be
the leader in the field of modular piping system both in aluminium and stainless steel suitable for wide
range of industrial fluids.

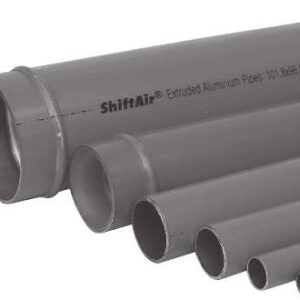

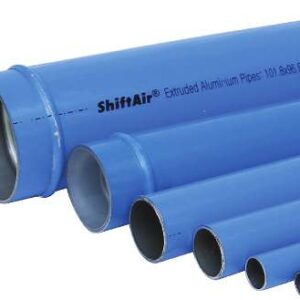

To overcome the common problems with conventional piping system like rusting, leakages & pressure
drop ShiftAir® introduces all Aluminium Alloy pipes & fittings which is completely corrosion free. The
inner surface of pipes are chromatised to make it smooth which in turn reduces the frictional losses and
high surface contact integral seals ensure the leakproof system. Aluminium pipes coating materials (at
external surface) are as per QUALICOAT standard. Light weight & modularity by design make the piping
system very easy to install and design the layout as & when required.
ShiftAir® is the first ever Indian piping company to use all aluminium clamp type
connection technology across all the sizes.
Applications:
Compressed Air, Inert Gases, Vacuum, Nitrogen, Carbon Dioxide etc. Customers are requested to consult
with us for any other Industrial Fluids Like Water, Oil etc.
Technical Parameters:
| Pipe Grade | 6063-T5 (Seamless extruded pipes in accordance with EN755.2, EN573.3) |
| Grade of fittings material | A383 with SS bolts & gripping ring |
| Maximum working pressure | 15 bar |
| Temperature range | —20°C to 80°C |
| Vacuum | 0.013 bar (Absolute Pressure) |
| Outer surface coating as per "QUALICOAT" standard Chromatised inner surface which reduces frictional losses |
|
| Standard conformation | CE, TUV, ISO 9000:2015, UL—94V.0, ROHS, ASTME 1251-1 7a, IS1608 |
Products
Tell Us What Are You Looking For ?
Guarantee
ShiftAir® hereby declares that it agrees to replace or repair free of cost components
which do not perform owing to manufacturing or material defect within 10 years
from the date of installation.
The present guarantee is valid provided:
ShiftAir engineers have proper accessibility to examine the products with issue.
Materials must operate within the specific / recommend range of working conditions
The guarantee becomes automatically null & void if:
If it puts into operations beyond recommended technical parameters
Defects being occurred because of mishandling
Defects caused by product modifications which is not approved by ShiftAir in advance
ShiftAir has a policy of continually develop products and therefore reserves the right to
modify any product shown in this catalogue
